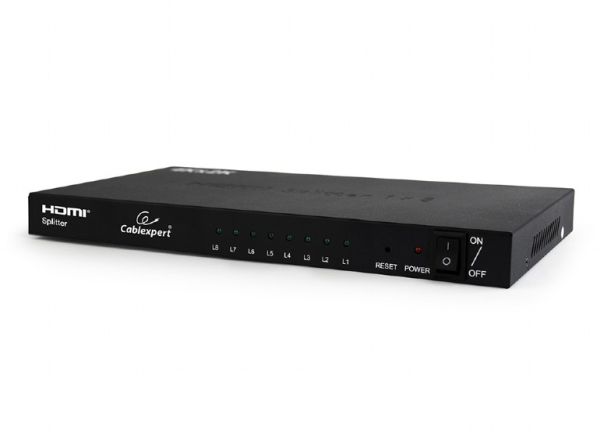

HDMI Interface Spliter 8 Ports w/Signal Amplifier Cablexpert DSP-8PH4-03
HDMI SPLITTER, 8 PORTS
PERFECT CONNECTION
SENDS A SINGLE HDMI SIGNAL TO 8 DISPLAYS
SIGNAL AMPLIFIER - IMPROVES SIGNAL QUALITY
PERFECT FOR HOME THEATRES, CLASS- AND CONFERENCE ROOMS
FEATURES
SENDS A SINGLE HDMI SIGNAL TO 8 SEPARATE MONITORS, PROJECTORS OR TV’S
THE DIGITAL 340 MHZ BANDWIDTH AMPLIFIER INCREASES THE TRANSMISSION DISTANCE
SUPPORTS 3D VIDEO
SPECIFICATIONS
PORTS: ONE INPUT RECEPTACLE, 8 OUTPUT HDMI OUTPUT RECEPTACLES, 19 PIN (A)
INTERFACE STANDARD: HDMI + HDCP V.1.4B (COMPATIBLE WITH ALL HDMI VERSIONS)
VIDEO FORMATS: HDMI UP TO 3840*2160/30HZ, 8/10/12 BIT COLOR; AUDIO DTS-HD/DOLBY-TRUEHD/DTS/DOLBY-AC3/DSD
MAXIMAL SINGLE-LINK RANGE: 1920X1080 PIXELS, 1080P
VIDEO AMPLIFIER: UP TO 340 MHZ BANDWIDTH, 3.2 GBPS
INPUT CABLE DISTANCE: (1080P RESOLUTION) ?15M, (4K RESOLUTION) ? 12M AWG26 HDMI STANDARD CABLE
OUTPUT CABLE DISTANCE: (1080P RESOLUTION) ?25M, (4K RESOLUTION) ? 15M AWG26 HDMI STANDARD CABLE
SHELL MATERIAL: STEEL
POWER ADAPTER: 5 V DC, 3 A
POWER CONSUMPTION: UP TO 1.6 A, 5 V DC
DIMENSIONS: 276 X 136 X 24 MM
NET WEIGHT: 0.66 KG
