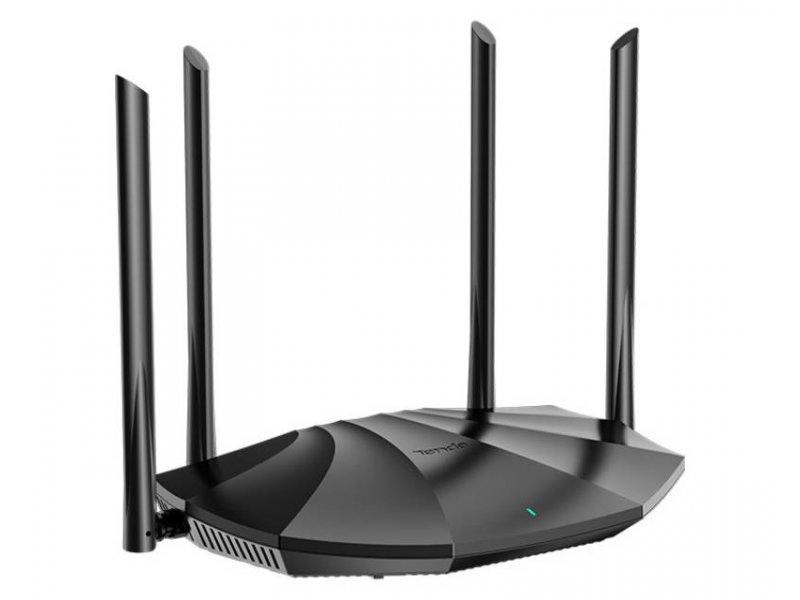

Tenda Wireless AX Smart Dual-Band Gigabit Router 1500Mbps WiFi6 TX2
Specification
Hardware:
Standard&Protocol
IEEE802.3, IEEE802.3u,IEEE802.3ab
Interfaces:
1*10/100/1000Mbps WAN Port
3*10/100/1000Mbps LAN Ports
Antenna
4*6dBi External Antennas
Button
WPS/Reset Button*1
Power
Input：AC 100-240V~50/60Hz 0.6A
Output：DC 12V⎓1A
LED Indicator
SYS*1
Dimension
9.40*5.68*1.58 in (238.9*144.3*40.3mm)
Wireless:
Wireless Standard
IEEE 802.11n/b/g 2.4 GHz
IEEE 802.11ax/ac/n/a 5GHz
Data Rate
5GHz: Up to 1201Mbps
2.4GHz: Up to 300Mbps
Frequency
2.4GHz & 5GHz
Transmission Power
<20dBm(2.4G)
<23dBm(5G)
Basic Features
Beamforming
MU-MIMO
Smart Power Saving
Tenda App: Local and Remote Management
Wireless Security
WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Encryption Disable and Enable
WPS Fast Connection
Software:
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify,Maxis,Maxis-special,Celcom,Digi
Network Protocol
Operating Mode
Wireless Router Mode
AP Mode
Universal Repeater Mode（Client+AP）
DHCP
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwarding
DMZ Host
UPnP
Security
Parental Control
Client Filter
Firewall
Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
DDNS
Support DynDNS, No-ip，oray，88ip
Special Features
WPA3
Unify 2.4 GHz & 5 GHz
Smart LED on/off
Tenda Wi-Fi App
Other Function
Bandwidth Control
Guest Network
IPTV
VLAN
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6
Others
Temperature
Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃
Humidity
Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing
Default Settings
tendawifi.com or //192.168.0.1
Certification
CE, RoHS, FCC
EIRP Power (Max)
2.4GHz＜20dBm
5GHz＜23dBm
Package Contents
Dual-Band Gigabit Wi-Fi 6 Router*1
Ethernet Cable*1
Power Adapter*1
Installation Guide*1
